PBB Baggage Conveyor System
In response to a growing need in the airline services industry, P&W Quality Machine Inc. and Airport Bridge Company, Inc. have teamed up and are pleased to offer a new alternative in baggage loading. Our focus is and has always been producing an excellent product while keeping operator safety in the forefront. Our conveyor system has been designed with both ease of use and ease of maintenance in mind. Made of the highest quality industry standard parts, this system will aid in the loading and removal of baggage and other last-minute items such as collapsible wheelchairs and strollers. Each unit can be adapted to fit all PBBs and can be utilized up to and including B757 height.
Weight: 1200 pounds
Electrical: 3 Phase 480vac 3 Amps supplied by PBB Mfg. Cabinet, no interlock required due to independency of PBB movement. The only connections to the PLB is a 3 amp breaker or fuse installed in PBB Mfg. control cabinet.
- 500 POUND CAPACITY - HEAVY DUTY CONSTRUCTION MADE WITH ALUMINUM AND STAINLESS STEEL
- USES INDUSTRY STANDARD MECHANICAL AND ELECTRICAL COMPONENTS INCLUDING PROGRAMMABLE CONTROL

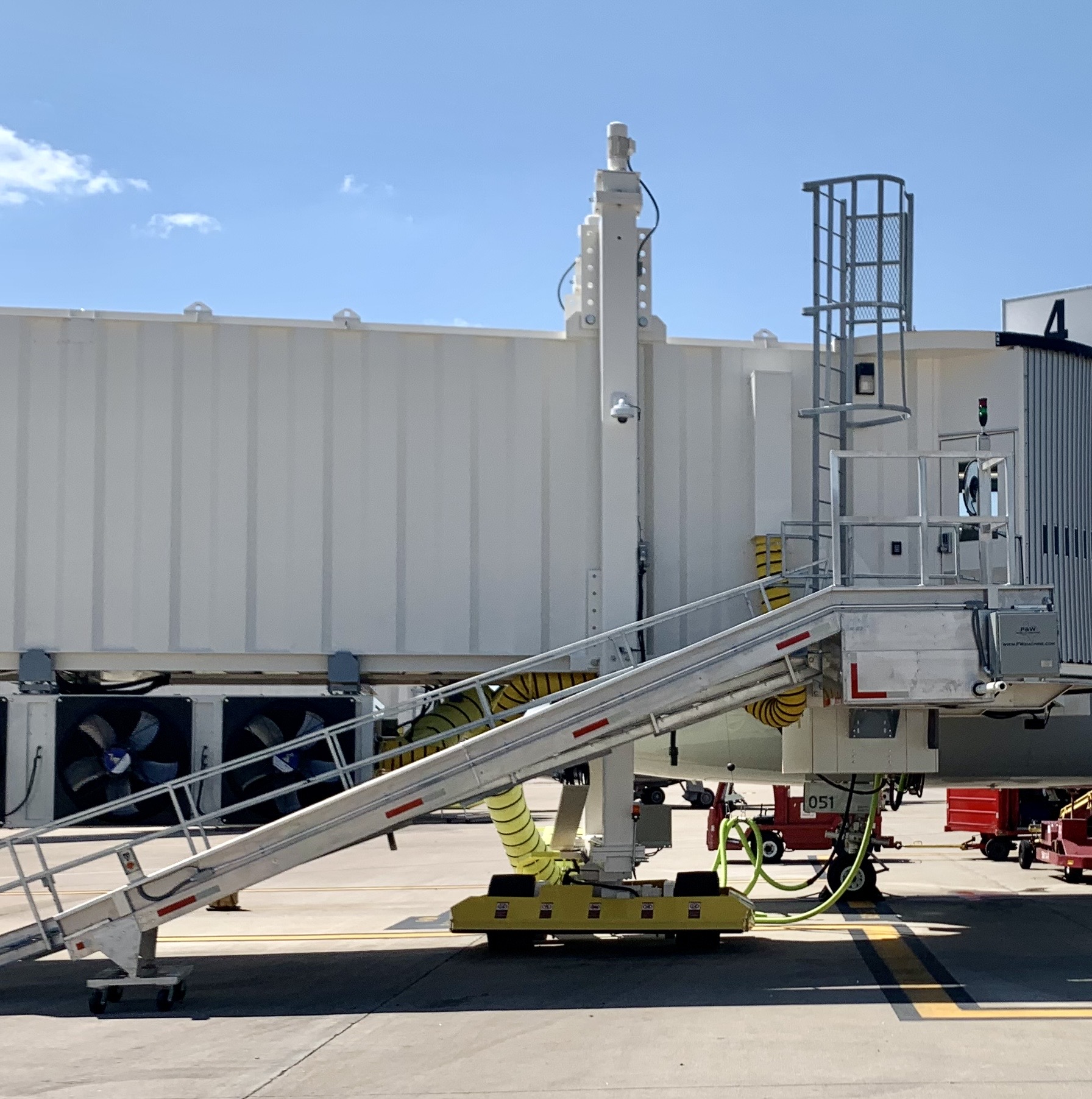

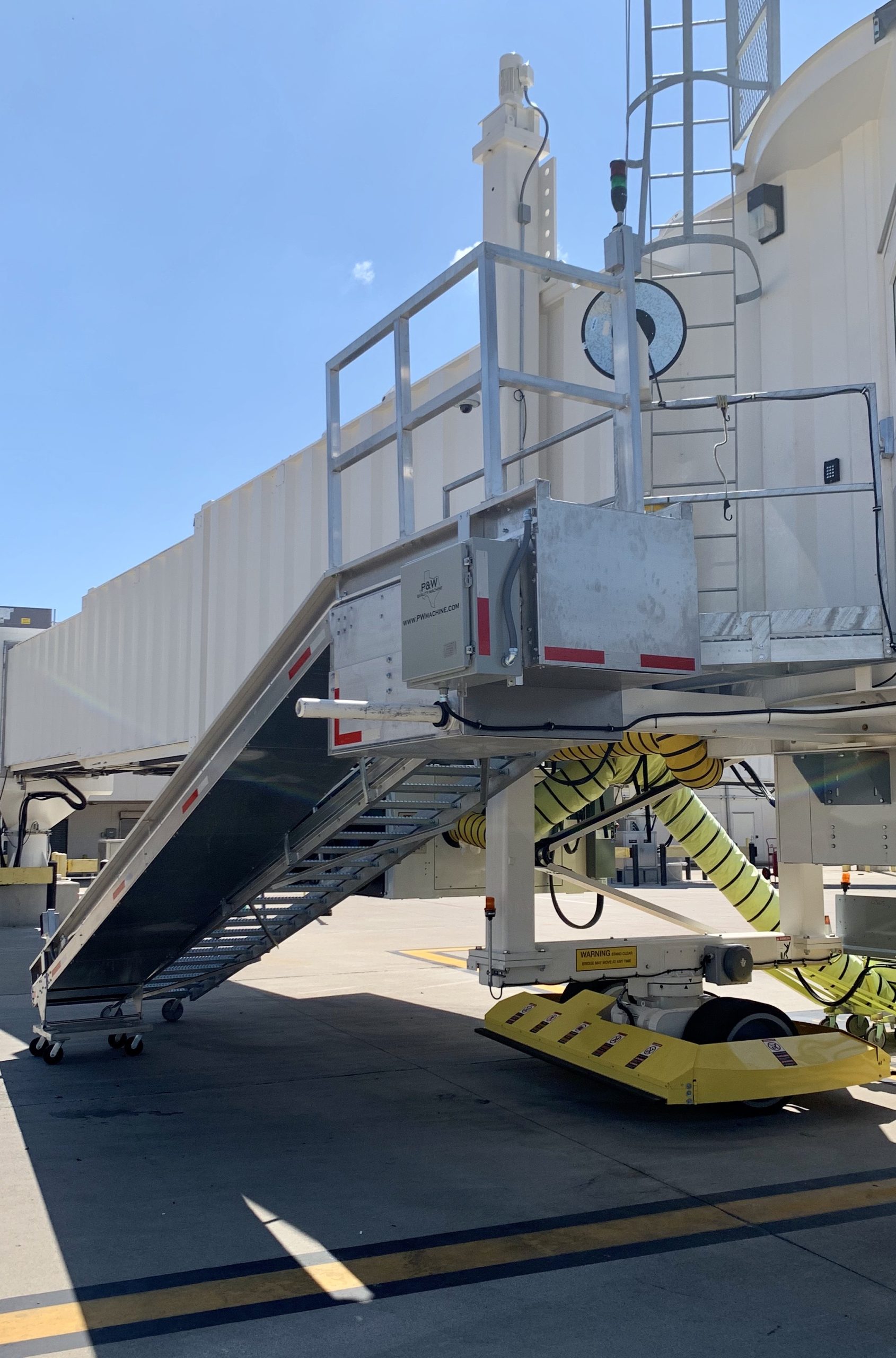

- CAN BE INSTALLED ON ANY PASSENGER BOARDING BRIDGE
- OPERATES ON AIRCRAFT UP TO AND INCLUDING B757 HEIGHT

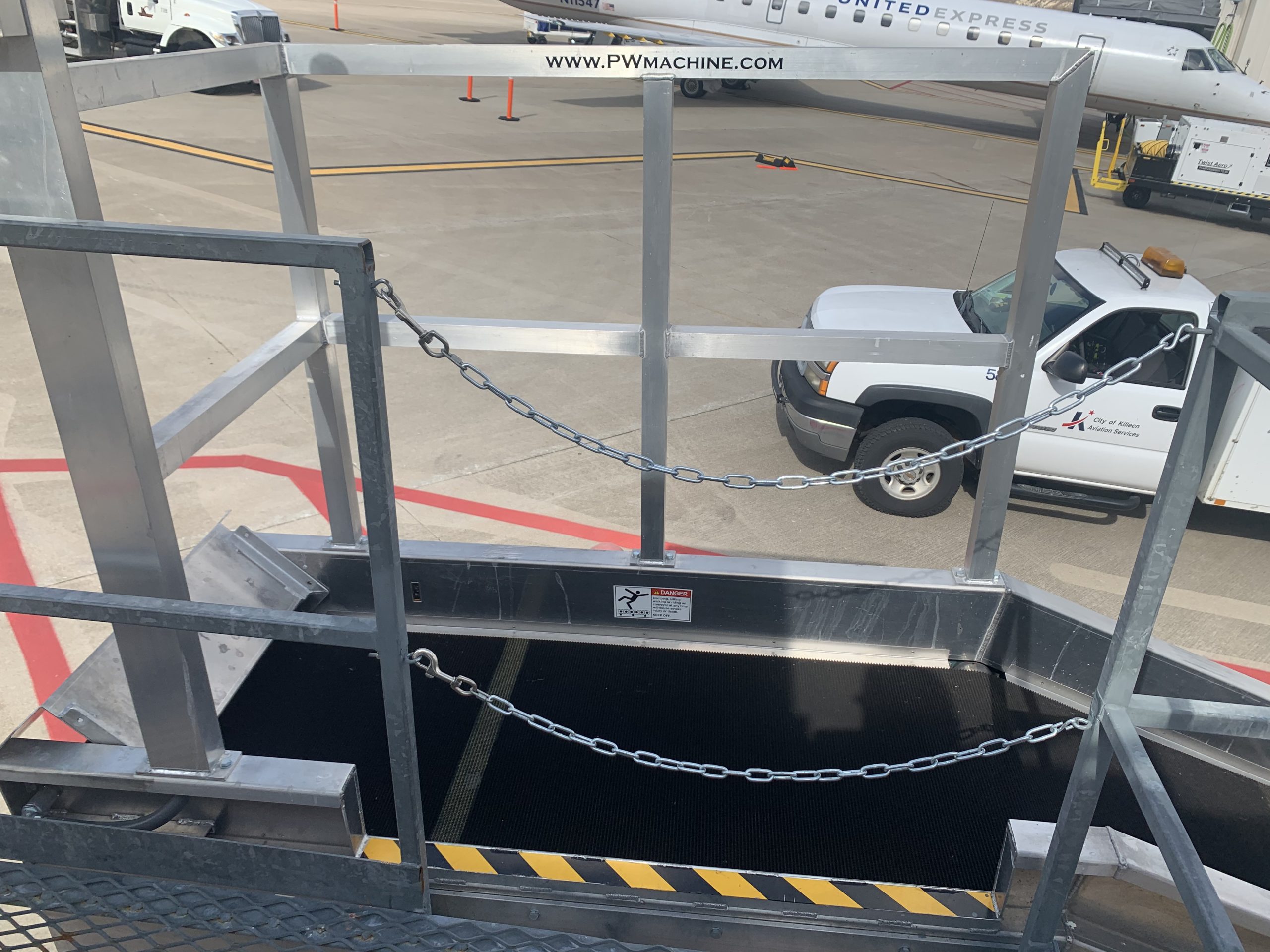

- 42” WIDE OPENING AT PBB LANDING
- CONTROL STATIONS LOCATED AT BOTH ENDS
- DUAL DIRECTIONAL CONVEYOR STOPS WHEN BAGS REACH EITHER END AND WILL RESTART AS SOON AS PHOTO EYES ARE CLEARED

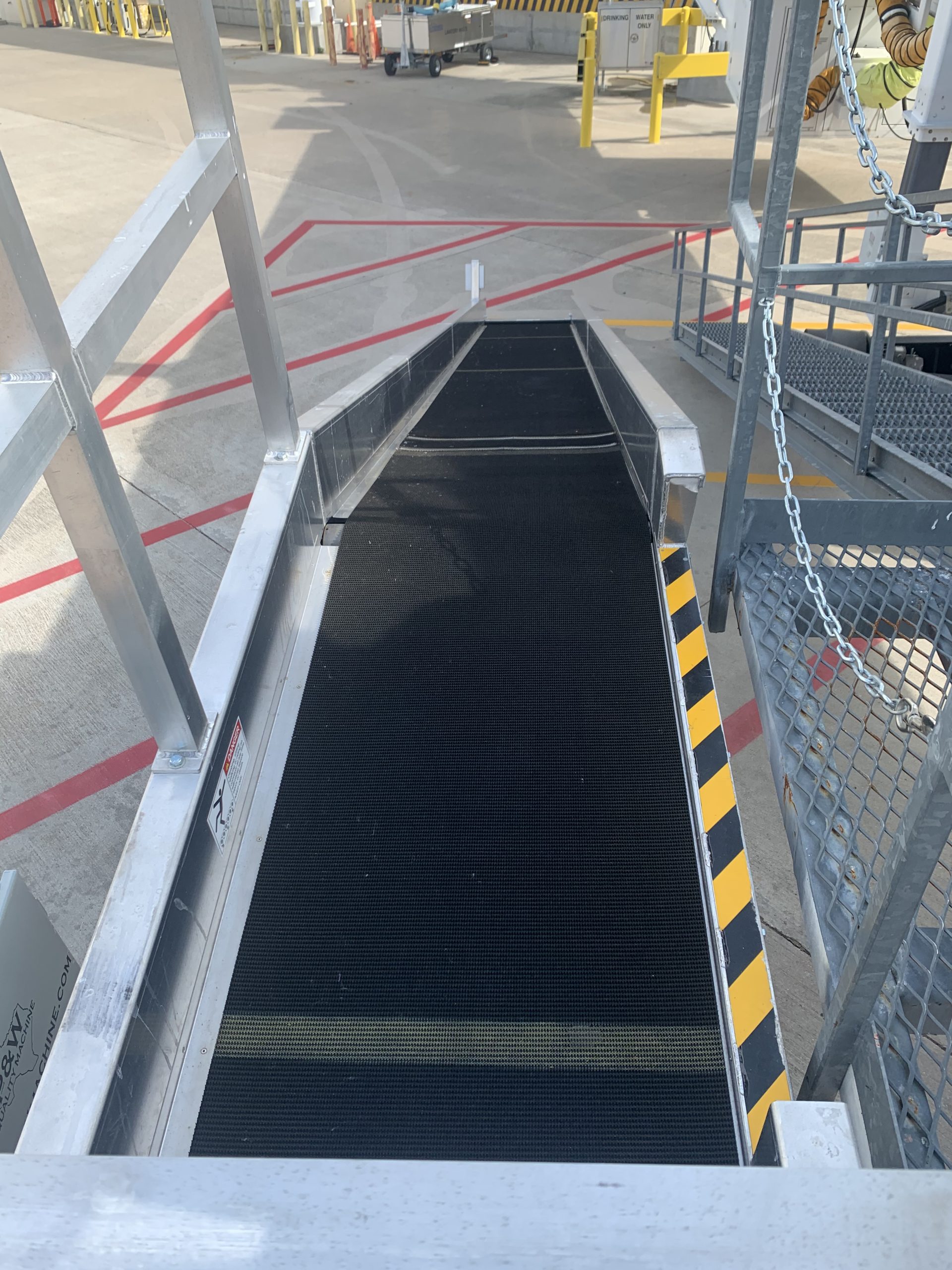

- 26” WIDE OPENING CONVEYOR TROUGH WITH A 24” WIDE 2 PLY RUBBER BELT
- FLASHING LIGHT INDICATORS FOR SYSTEM ON / OFF BAGGAGE PRESENT ON BELT
- TIMES OUT AND STOPS AFTER NON-USE
